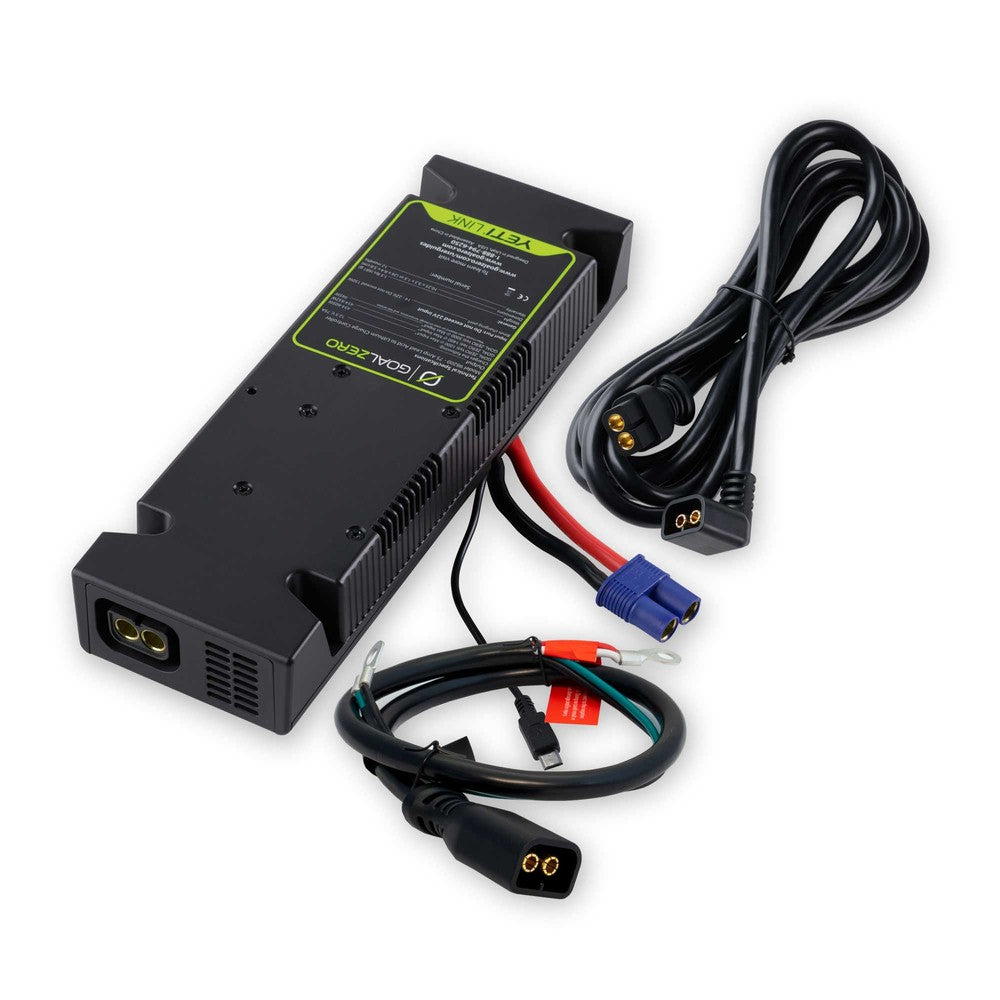

Everything you need to charge a Yeti Lithium from your vehicle's alternator while on the move. Kit includes a Yeti Link, a Male EC8 to Ring Terminal, and an EC8 12ft Extension Terminal. NOTE: Link must be placed in "Car Mode" to utilize this feature or it will drain your vehicle’s battery.
YETI LINK CAR MODE
Quickly and easily recharge a Yeti Lithium (1000 or higher) from your vehicle's alternator while on the move.
Charge rates vary from 25A - 50A (300W - 750W) depending on Yeti Lithium size and capacity.
HOW IT WORKS
NOTE: Link must be in Car Mode to utilize this feature or it will drain your vehicle’s battery. All Links comes standard set in "Tank Mode." Tank Mode allows you to chain a Yeti Tank Expansion Battery to a Yeti Lithium Portable Power Station to increase your energy storage capacity.
To switch from Tank Mode to Car Mode, push pinhole reset button on top of the Link four times. When Link is in Car Mode, all four indicator lights will turn on and blink together. To switch back to Tank Mode, press pin hole reset button four more times. When Link is in Tank Mode, lights will scroll from bottom to top individually.
EC8 Female to Ring Cable allows you to connect directly to your vehicle's 12V battery or alternator's +/- terminals. EC8 12' Extension Cable connects the Ring Cable to the back of your Yeti Link.
TECH SPECS
Yeti Link Expansion Module
CHARGE TIMES
- Max Input from Yeti Tank to
- Goal Zero Yeti 1000 454-605W
- Goal Zero Yeti 1400 454-750W
- Goal Zero Yeti 3000 750W
PORTS
- Do not exceed 22V input
- 8mm Charging Port (input): 14 - 22V Do not exceed 150W (10A) per port
- External Battery Connector (ouput): 65A charge controller
GENERAL
- Product SKU: 98200
- Weight: 1.5 lbs (680 g)
- Dimensions: 10.25 x 3.3 x 1.5 in (26 x 8.4 x 3.8 cm)
- Warranty 12 months
EC8 12ft Extension Cable
GENERAL
- Product SKU: 98201
- Cord Length: 12 feet
- Gauge: 8
- Used with: Yeti Tank
Male EC8 to Ring Terminal
GENERAL
- Product SKU: 98202
- Cord Length: 39 in (99 cm)
- Gauge: 8
- Used with: AGM Lead Acid Battery
